Removing drive shaft from knuckle

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

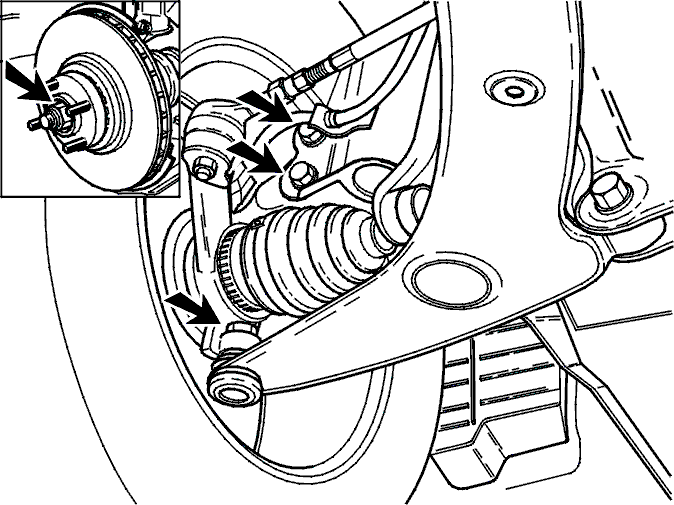

Fig 1: Removing Drive Shaft From Knuckle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the steering wheel to the left.

Push the shaft out of the knuckle.

Remove the nut from the drive shaft.

Remove the two shock absorber bolts.

Push the knuckle and drive shaft down.

Push the shaft out of the knuckle.
