Installing pulse wheel to drive shaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

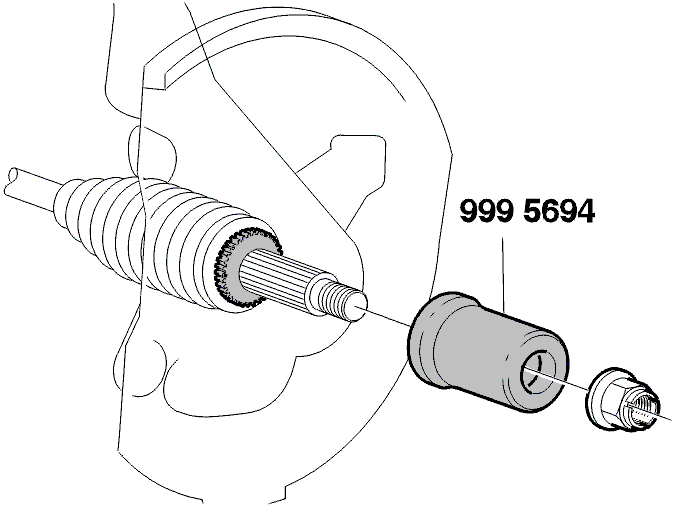

Fig 1: Installing Pulse Wheel To Drive Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Take care to avoid damaging the bell joint and/or pulse wheel.

Clean surface.
Position the pulse wheel on the drive shaft.
Install 9995694 and use a drive shaft nut with flange (model year 1998-) to press the pulse wheel to the end of the drive shaft.
Check installation is correct for fit.
