Checking and adjusting gear-shift position sensor: Check

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

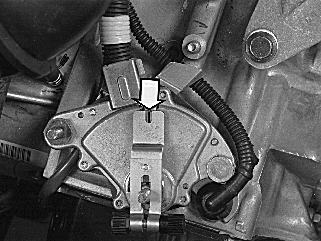

Fig 1: Identifying Tool On Gear Shift Linkage Rod

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Press the tool down towards the flat surfaces below the thread on the shaft.

Install tool 9995475 on the gear shift linkage rod.

Check that the rod is in the N position (second position after the P position, P-R-N).

The slot on the tool must line up exactly over the marking on the gear-shift position sensor.
