Checking and adjusting gear-shift position sensor: Adjustment
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Ensure that:
- The bracket for the dip stick pipe has been slackened off
- The gear-shift position sensor screws have been slackened off.

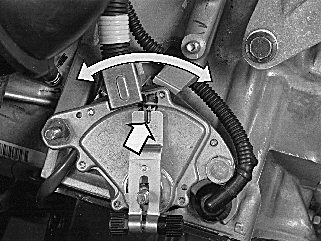

Rotate the gear position sensor so that the mark on the sensor is lined up exactly with the slot on the tool.
Tighten the sensor screws.
Tighten to 25 Nm .
