Installing the gear selector cable
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

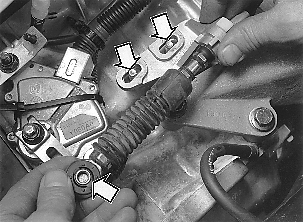

Carefully reinstall the cable on the lever pin and studs.
Ensure that neither the gear selector or lever change position.
Tighten nuts alternately lightly. Then tighten to 25 Nm .
Install the washer and the retaining clip on the lever.
Install the cable in the clip on the connector bracket.
