Adjusting the gear-shift position sensor
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove the nut for the cable duct mounting. Lift the cable duct away from the screw.
Slacken off the screws for the gear-shift position sensor.

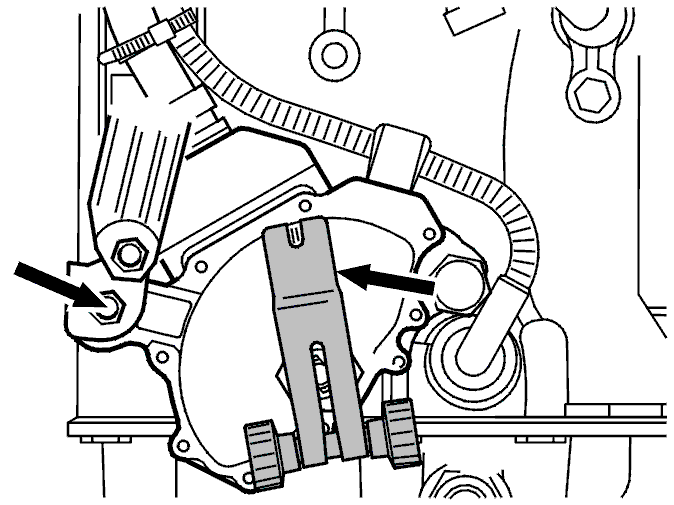

Rotate the gear position sensor so that the mark on the switch aligns with the groove on the tool. Tighten the screws for the sensor. Tighten to 25 Nm .
Remove the adjustment tool.
