Front camshaft seal, installing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

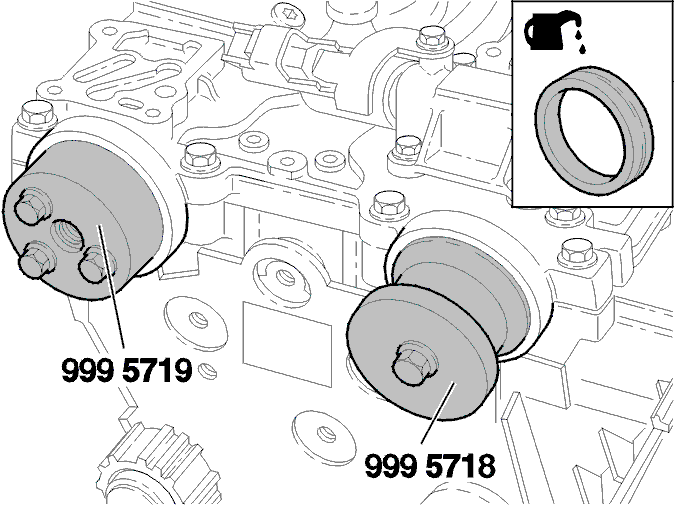

Fig 1: Lubricating Surfaces Of Seal That Camshaft Rotates Against And Installing Seal Using Drift Special Tool
Lubricate the surfaces of the seal that the camshaft rotates against.
Install the new seal for the camshaft with variable valve timing. Use drift 9995718 .
Install the new seal for the camshaft without variable valve timing. Use drift 9995719 .
Install the screw holding the inner timing cover to the cylinder head.
