Removing a pulley with freewheel
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Install the generator (GEN) in a vise (use protective plates)
- Remove the dust boot

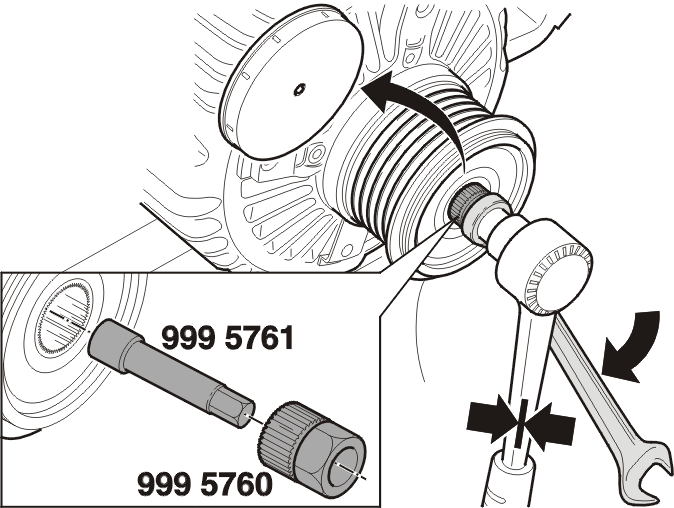

- Install socket 9995761 (Denso) or 9512849 (Bosch) on the shaft as shown in the illustration
- Install counterhold 9995760 over the socket 9995761 (Denso) or 9512849 (Bosch).
NOTE:
The rotor shaft and pulley are left-hand threaded.
- Block the shaft and detach the pulley, turn clockwise
- Remove the pulley.
