Secondary lock

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

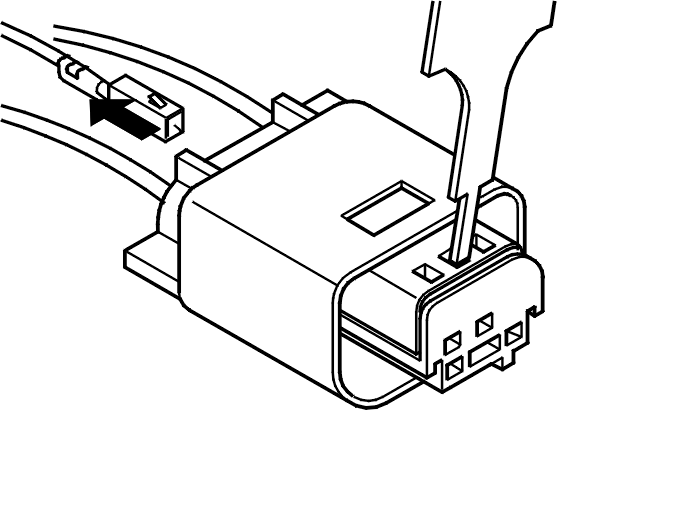

Fig 1: Adjusting Lock Pins Using An Electrician's Screwdriver
GLL101329Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust the lock pins using an electrician's screwdriver and press up the secondary lock, as shown in the illustration.
