Secondary lock

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

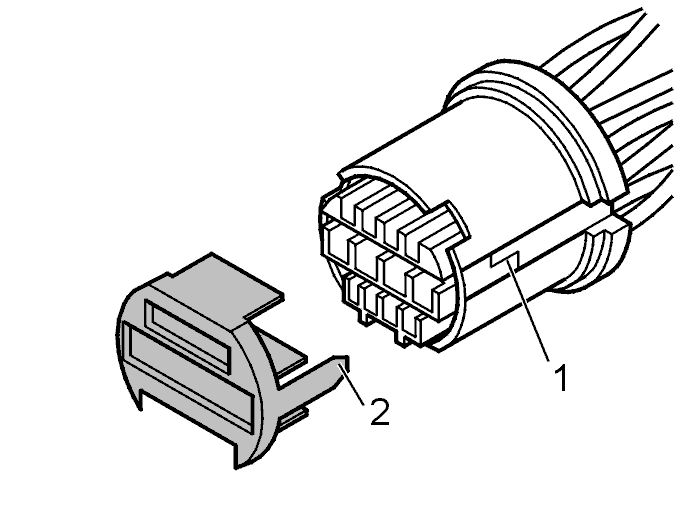

Fig 1: 12 Pin Round Connector Secondary Lock (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Angle out the catches on both sides.

Pull out the secondary lock.

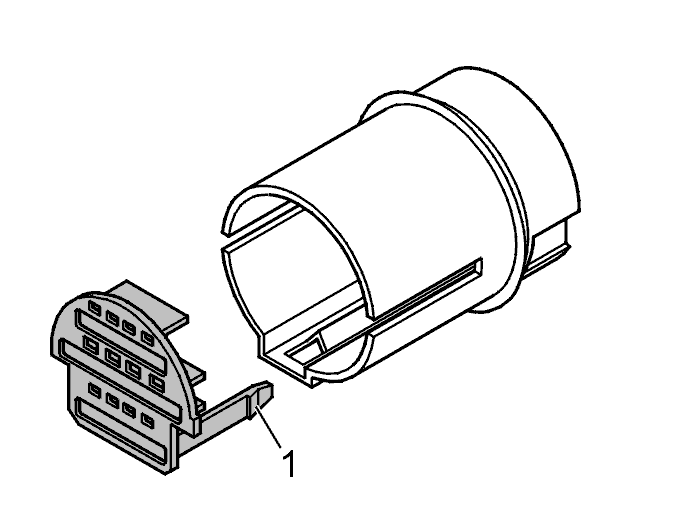

Fig 2: 12 Pin Round Connector Secondary Lock (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
