Secondary lock

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

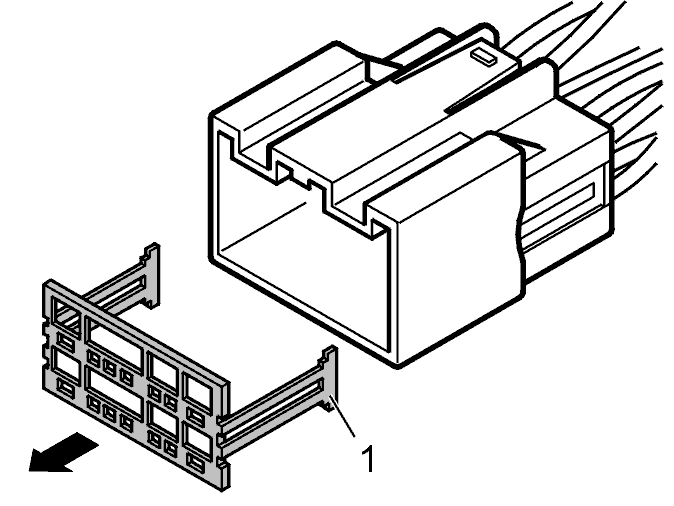

Fig 1: Identifying Front Housing Section Released From Pin Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pin housing

Release the front housing section on the pin housing by pulling out the rear catches while at the same time pressing the housing section forwards.

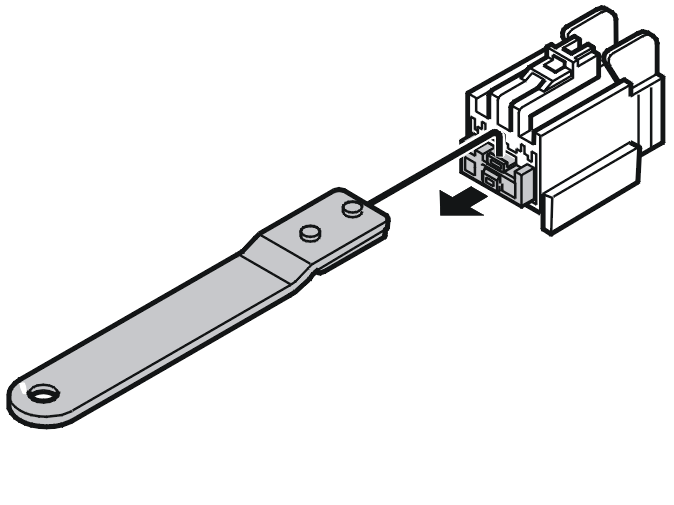

Fig 2: Identifying Secondary Lock Pulled Out Using Tool 951 2853

Courtesy of VOLVO CARS OF NORTH AMERICA.

Socket housing

Open the catches and pull out the secondary lock, use tool 9512853 or an electrician's screwdriver, as shown in the illustration.

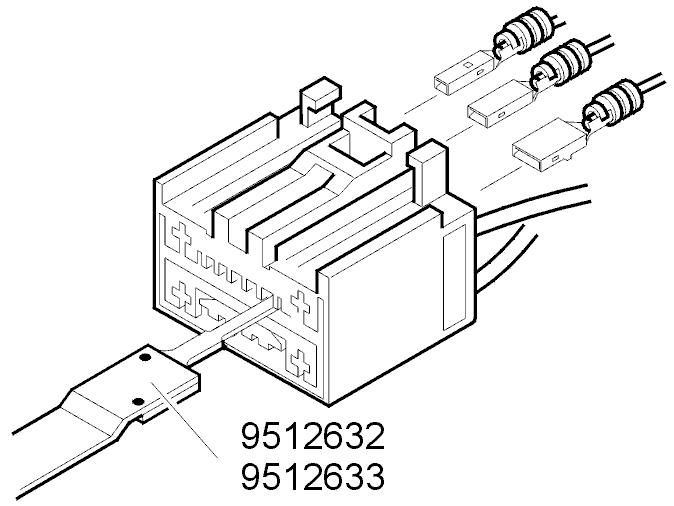

Fig 3: Identifying Tools 951 2632 , 951 2633 , 951 2639 To Remove Primary Lock (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

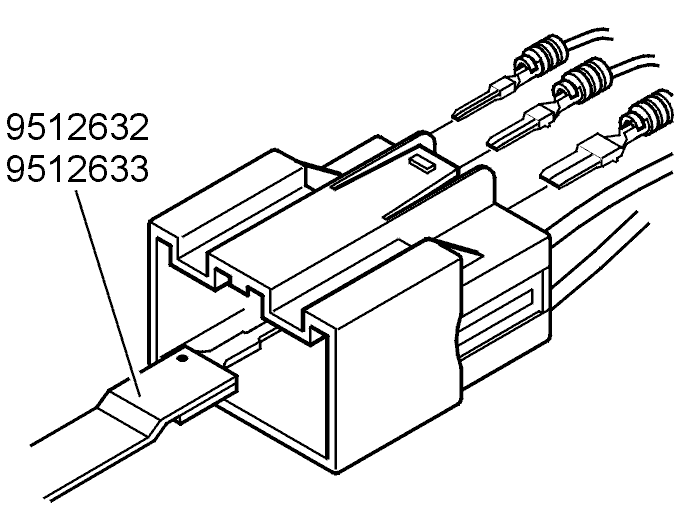

Fig 4: Identifying Tools 951 2632 , 951 2633 , 951 2639 To Remove Primary Lock (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
