Primary lock

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

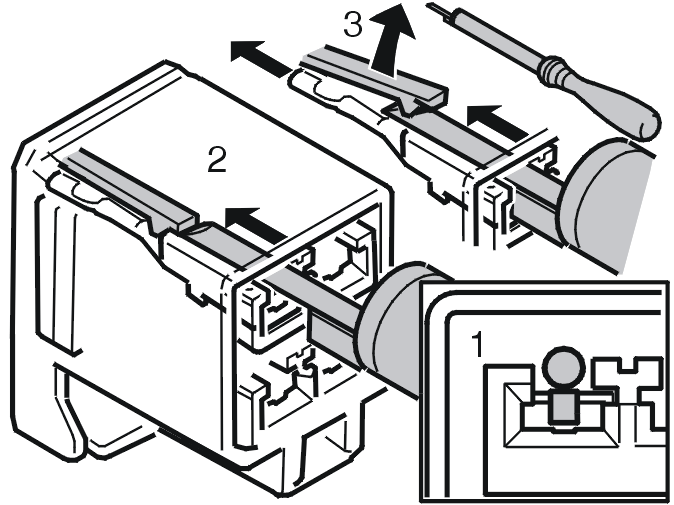

Fig 1: Identifying Cable Pulled Backwards

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use tools 9512632 , 9512633 , 9512639 to remove the primary lock, as shown in the illustration.

At the same time pull the cable carefully backwards.

Fig 2: Alternatively Using Tool 951 2852

Courtesy of VOLVO CARS OF NORTH AMERICA.

Alternatively use tool 9512852 as shown in the illustration.

NOTE:

Tool 9512852 can only be used for socket housings.
