Secondary lock

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

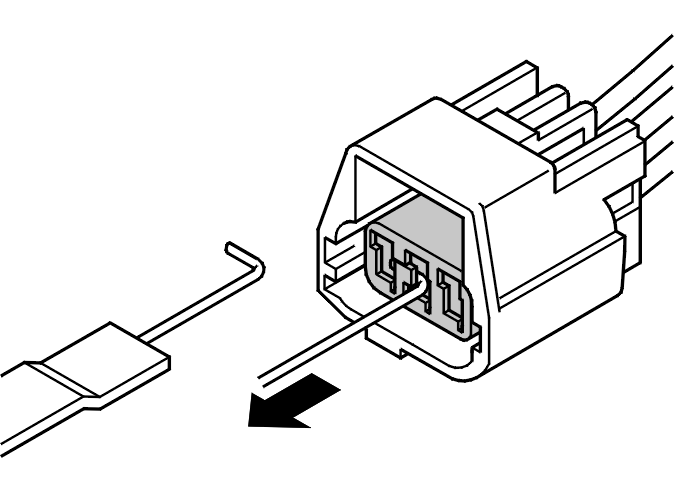

Fig 1: Identifying Secondary Lock Pulled Out Using Tool 951 2853
GLL101315Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the catches and pull out the secondary lock, use tool 9512853 or an electrician's screwdriver, as shown in the illustration.
