Primary lock

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

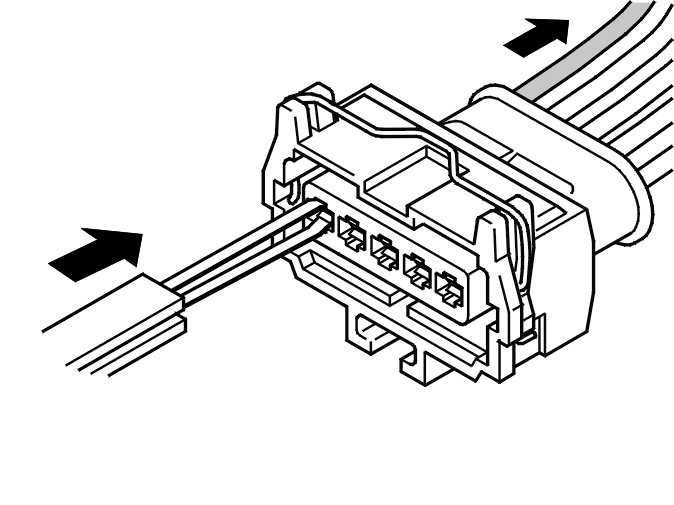

Fig 1: Identifying Tool 951 2631 To Remove Primary Lock

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use tool 9512631 to remove the primary lock, as shown in the illustration.

At the same time pull the cable carefully backwards.

Fig 2: Identifying Cable Terminal Insertion

Courtesy of VOLVO CARS OF NORTH AMERICA.
