Removing the mounting bracket for the engine control module (ECM)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

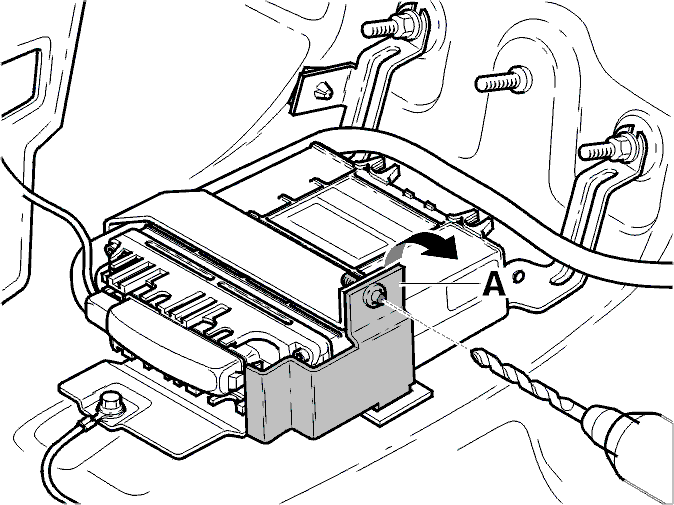

Fig 1: Drilling Out Security Screw And Removing Mounting Bracket For Engine Control Module (ECM)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Switch off the ignition for 30 seconds. Then switch it on again. (If the engine cooling fan (FC) runs on, wait until it has stopped. Then wait a further 30 seconds)
Remove the side panels from center console
Drill out the security screw on the right-hand side of the bracket. Remove the security screw using screw extractor 9985447
NOTE:
Do not let dust/debris fall onto the carpet
Remove the bracket (A).
