Removing the engine control module (ECM)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

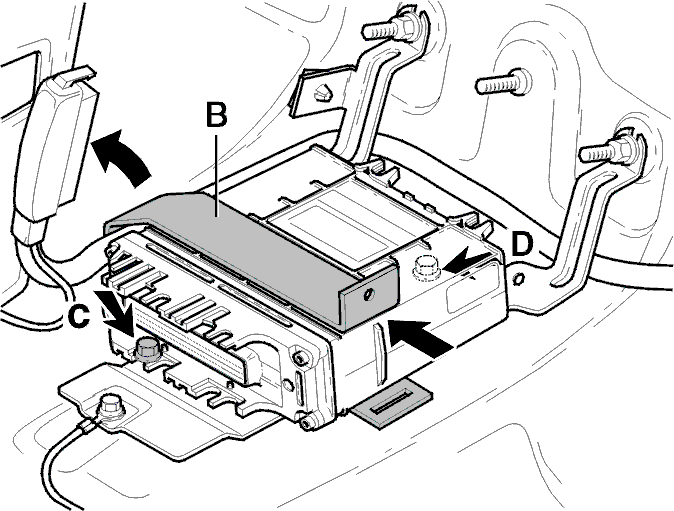

Fig 1: Identifying Engine Control Module (ECM) Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the bracket (B) to the left. Remove the bracket
Release the connector catch. Disconnect the connector
Remove screw (C). Slacken off screw (D)
Remove the engine control module (ECM) (move the carpet to one side if necessary).
NOTE:
Always check the control module and the control module box connectors for bent or damaged terminal pins and connecting sockets. This may be the cause of the fault.
