Installing the mounting bracket for the engine control module (ECM)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

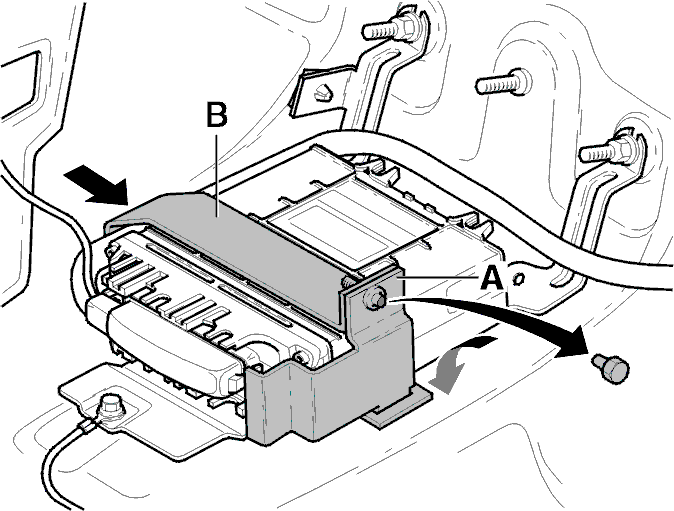

Fig 1: Identifying Engine Control Module (ECM) Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the mounting bracket (B) over the cable harness and engine control module (ECM)
Fold the mounting bracket (A) back into place. Install a new security screw
Tighten the security screw until the screw head breaks off
Re-position the carpet. Reinstall the side panels for the center console.

NOTE:

After installation, the control module will learn the Verlog code the first time the ignition is switched on.

NOTE:

Check the automatic cruise control settings - if applicable.
