Measuring fuel pressure EMS 2000: Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

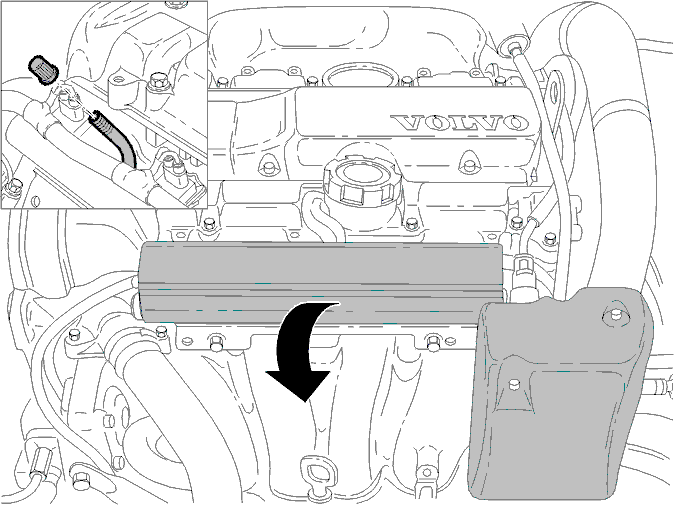

Fig 1: Removing Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

The cover over the throttle pulley.
The aluminium plate, (on turbocharged engines).
The protective cap on the Schrader valve.
