Installing engine control module (ECM)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

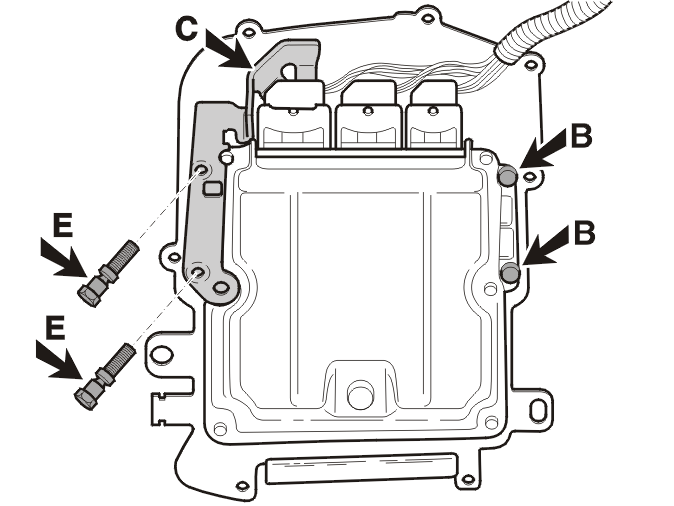

Fig 1: Identifying Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Plug in the connectors and check so that they are connected correctly.
Install the engine control module and install the cable clamp.
Install both screws (B) and tighten with fingers.
Install the safety brace (C) with 2 new shear screws, tighten with fingers.
Tighten the screws (B) with 10 Nm and the shear screws (2 pcs.) until the screw heads break off.
Check that the casing's seal is positioned correctly and is intact.
Install the casing and tighten the screws.
