Location Of the Bulbs

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

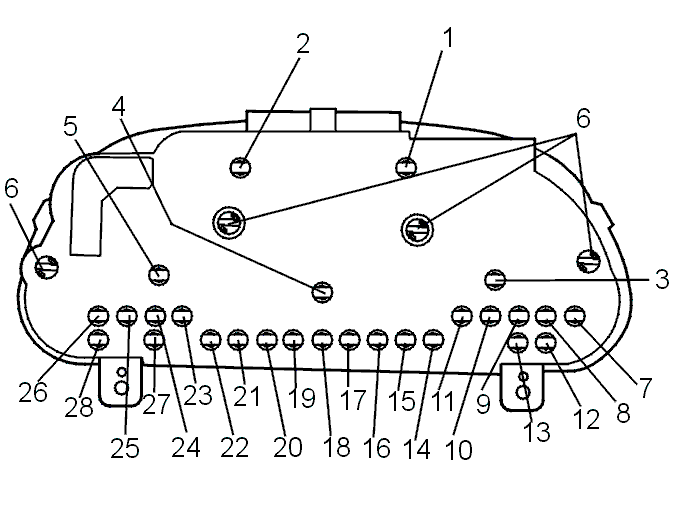

Fig 1: Identifying Bulb Location
GLL112563Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Left turn signal lamp
  2. Right turn signal lamp
  3. Clock
  4. Odometer and trip odometer
  5. Trip computer
  6. Gauges
  7. Fog lamps
  8. Rear fog lamps
  9. Cruise control
  10. Bulb failure warning sensor
  11. High beam
  12. Trailer turn signal lamps
  13. Low washer reservoir level
  14. Anti-lock braking system (ABS) not working
  15. Open door
  16. Parking brake applied
  17. Low oil pressure
  18. Hazard warning signal flasher
  19. Fault in SRS system
  20. Brake failure warning lamp
  21. Generator (GEN) not charging
  22. Seat belts not fastened (Australia only)
  23. DSA (not diesel) Preheating (diesel)
  24. Service reminder indicator (SRI)
  25. Automatic transmission
  26. Fault in engine management system
  27. Fuel level
  28. Park/Neutral position (PNP) switch (Immobilizer).
