IC Unit/Outer Temperature Gauge And Cover Washer Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

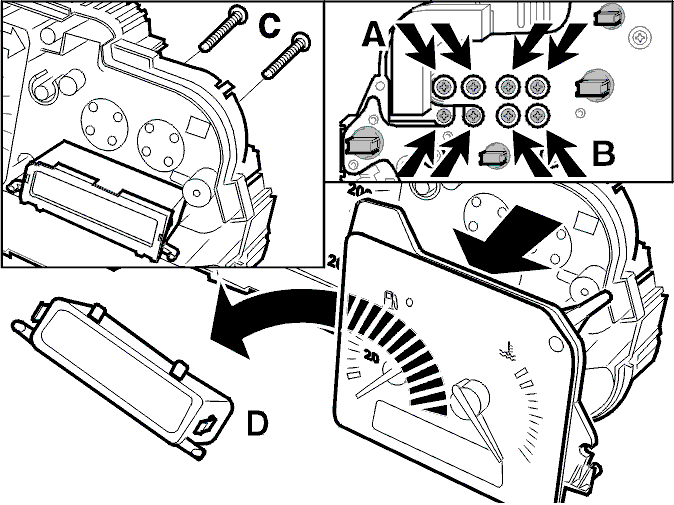

Fig 1: IC Unit/Outer Temperature Gauge And Cover Washer

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the glass and the black cover panel; see Glass Removal
the cover (A)
the 8 screws (B)
the engine temperature gauge/fuel gauge
the cover washer (D) if one is fitted
the 2 screws (C)
the IC unit/outer temperature gauge.
