Vacuum pumping
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Check the oil level in the compressor. Fill with new oil if necessary according to Oil in the A/C system , before vacuum pumping the system.

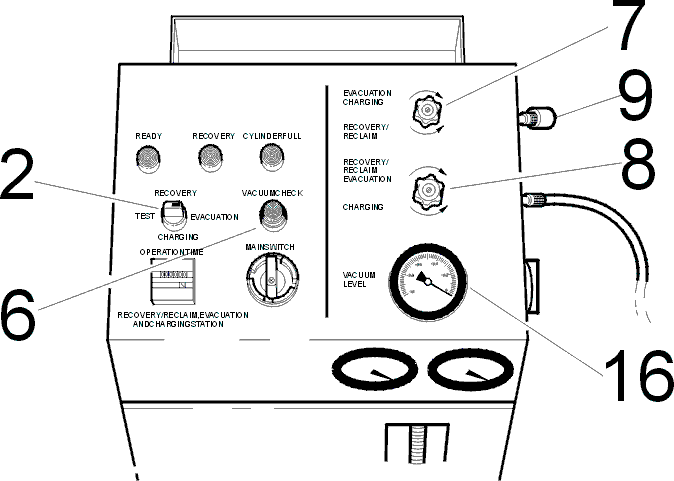

Turn the switch to the evacuation position.
Cocks 7 and 8 must be shut so that no air is sucked into the station.
Let the vacuum pump run for at least 50 minutes to ensure that all moisture is evacuated from the system.
The pressure is then 1 - 3 mbar.
Press the "vacuum test" button (6). Hold it pressed in for 4 minutes.
The value displayed by the vacuum gauge (dial 16) may only rise slightly (0.1 - 0.3 mbar).
Release the "vacuum test" button (6). The station returns to its original mode.
