Filling the collection tank
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Only used if draining several cars that will not be refilled.
WARNING:
Use only approved refrigerant containers (bottles). Do not overfill the refrigerant holder (bottle). Fill to only 80% of the listed volume (the gases may expand when the temperature rises).

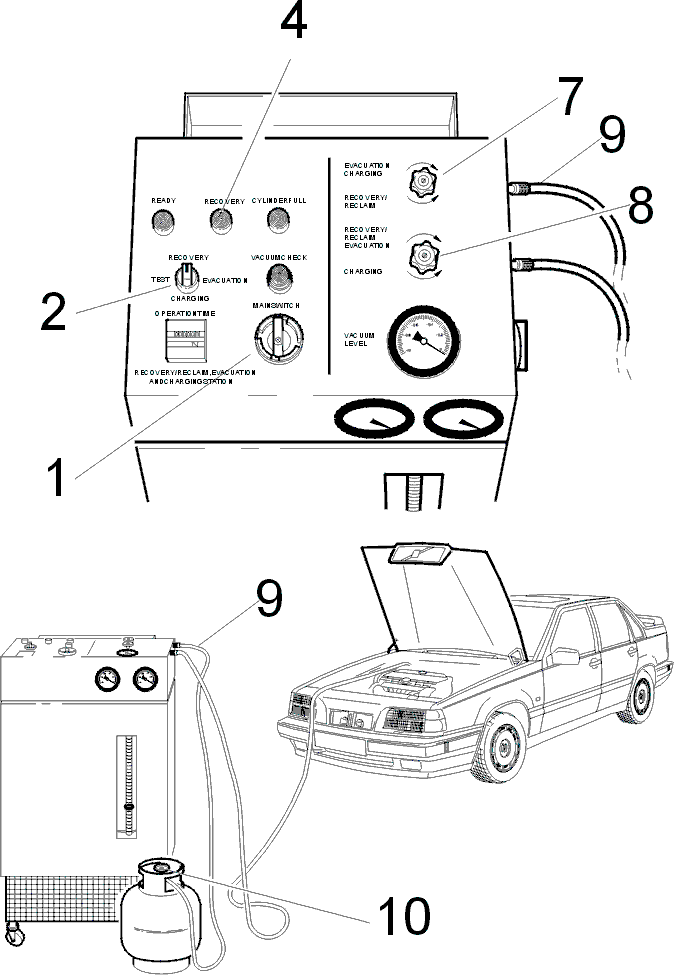

Switch on the main switch (1).
Connect the red hose to the outlet (9) on the equipment.
The cock (7) must be closed.
Close cock 8 and open cock 7.
Turn the switch (2) to the filling position.
The station now automatically drains the cylinder into the container (bottle).
When draining is complete, close the cock on the refrigerant container (bottle).
Turn the switch (2) to the recycling position.
Close cock 8 and open cock 7.
The hose now releases automatically.
