Overview of pipes and hoses

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

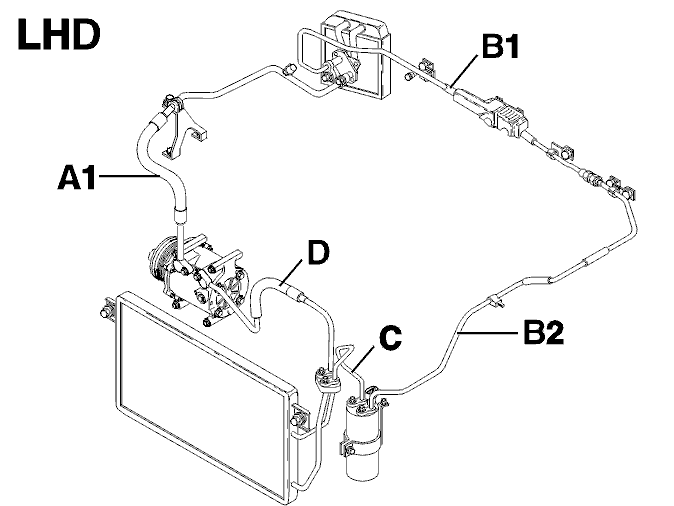

Fig 1: Identifying Overview Of Pipes And Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

A1: Hose/pipe between the compressor and evaporator

B1: Pipe between the evaporator and coupling

B2: Pipe between the coupling and refrigerant reservoir

C: Pipe between the refrigerant reservoir and condenser

D: Hose between the condenser and compressor
