Air distribution damper motor, replacing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
When it is replaced the control motor must first be put in the correct position.
Connect +12 V and ground to terminals 2 and 6. Let the motor turn so that the lever comes to the zero position.

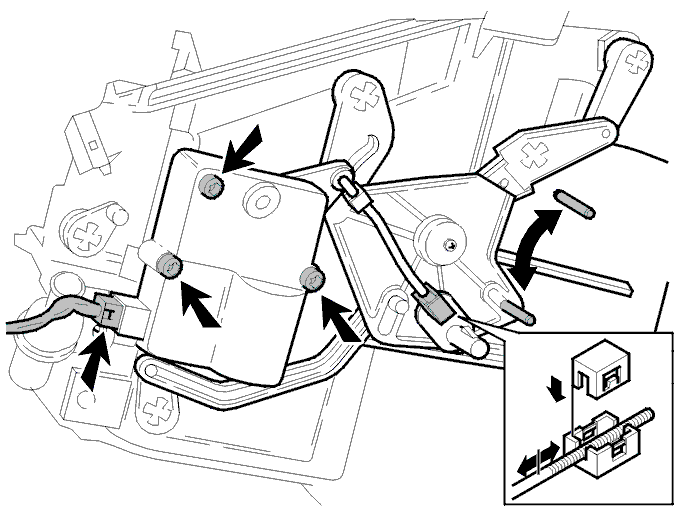

Transfer the control arm to the motor damper mechanism.
Install the motor.
Position the large dial in the 0- position.
Set the control arm in position and lock it.
