Replacing rear seat belt buckles

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

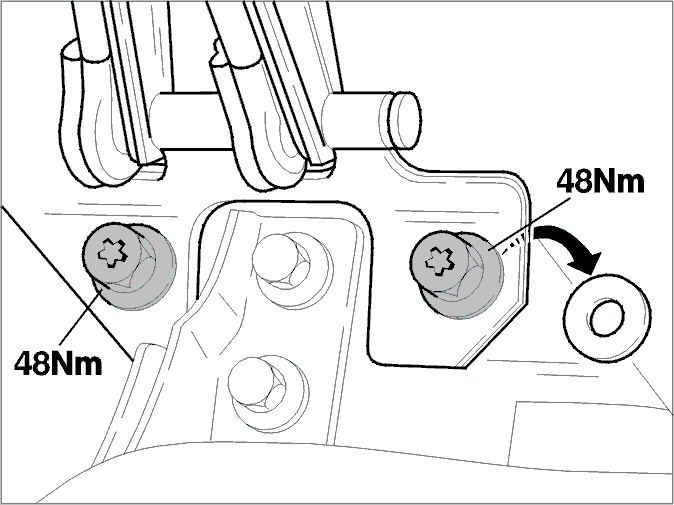

Fig 1: Rear Seat Belt Buckle With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the seat forward
Remove the mounting screws. Remove the seat belt buckle.

NOTE:

The mounting for the center belt is secured with a washer under the support on the left striker plate.

Install in reverse order.

Clean the mounting
Apply locking fluid to the screws
Tighten the screw. Tighten to 48 Nm .
