Cutting the PUR bead. Step 2

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

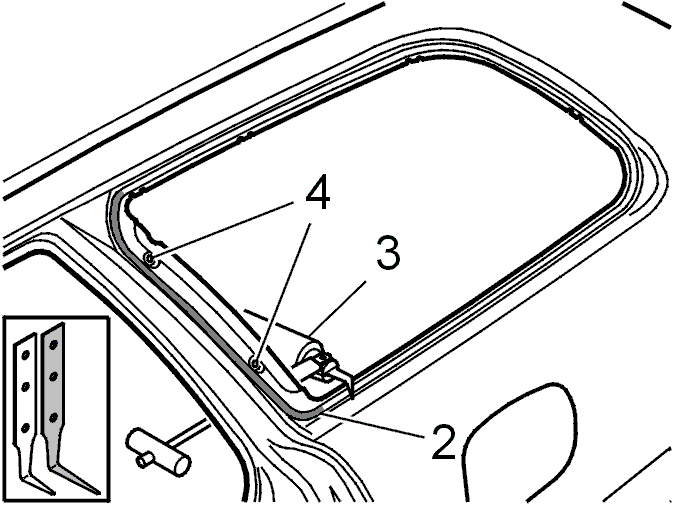

Fig 1: Cutting Along Marked Edge And PUR Bead Using Tool 951 2786 Ensuring Guide Pins Are Not Cut Off

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut along the marked edge and the PUR bead (2). Use the tool (3), P/N 9512786. Do NOT cut off the guide pins (4)
Use a long knife blade, P/N 9512788.
CAUTION: Do not damage the paint.
Hold the rear edge of the window a small distance from the bodywork so that the remaining section of the marked PUR bead (2) can be reached with a thin bladed knife.

NOTE:

Use a soap solution. This will make cutting easier.
