Cutting the PUR bead. Step 1

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

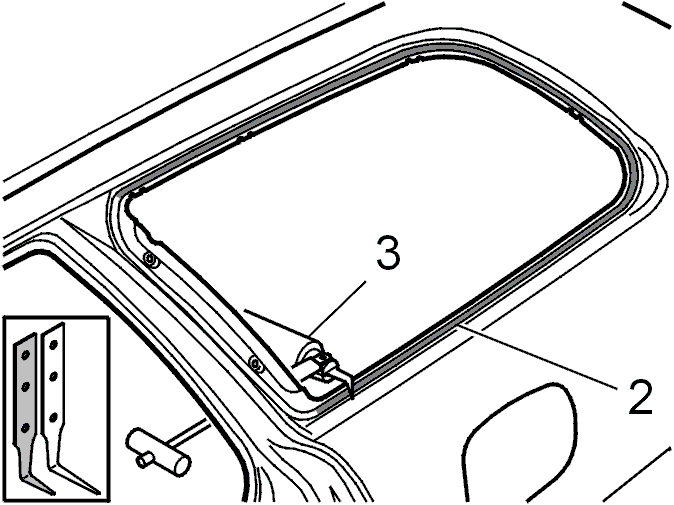

Fig 1: Cutting Along Marked Edge & PUR Bead Using Tool 951 2786

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut along the marked edge and the PUR bead (2). Use the tool (3), P/N 9512786
Use a short knife blade, P/N 9512787.
CAUTION: Do not damage the paint.

NOTE:

Use a soap solution. This will make cutting easier. Ensure that the headlining remains clean and is not damaged.
