Installing the rear panel

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

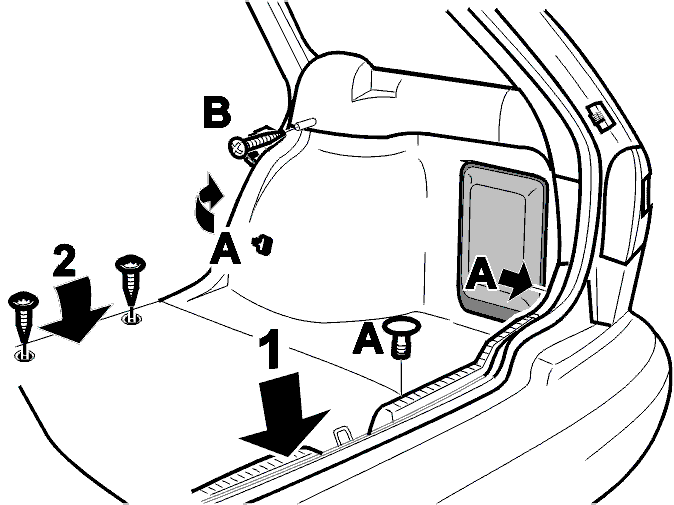

Fig 1: Installing Right Rear Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the cargo compartment panel with a twisting movement.
Install clip A. Install screw B.
The side panel on the right-hand side. Press the cargo net into place on the reverse of the cargo compartment panel.
Where applicable: Install the mountings for the protective net.
Reinstall the rear panel. Reinstall the cargo compartment carpet.
