Installing rear side windows
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Install the side window. See Installation of rear side window
- When working with PUR on the body flange, see PUR on body flange
- Clean the area on the window where the PUR adhesive will be applied. Use cleaner H (black cap)
- Apply glass activator (yellow cap) to the area on the window where the PUR adhesive will be applied
- Apply glass primer (green cap) to the area on the window where the PUR adhesive will be applied
- Apply liberally without allowing to run
- Let the primer dry until the surface is matte

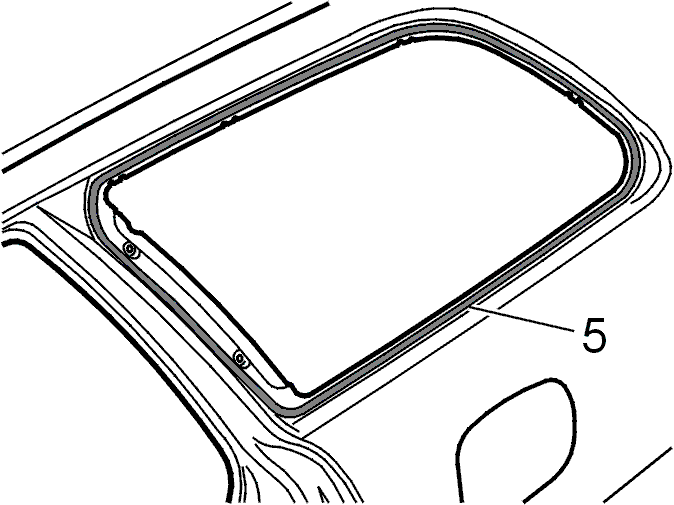

- Apply the PUR / RIM activator (blue cap) on the remaining PUR bead (5) on the body flange
- Load both the cartridges into the adhesive gun. Install the mixer pipes
- Apply adhesive to the window or to the body flange
- Press the window into the correct position by hand
- Secure with tape.
