Installation of rear side window

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

For handling PUR on the body flange, see PUR on body flange .

Clean the surface of the window where the PUR glue is to be applied using H cleaner (black cap).

Apply the glass activator (yellow cap) onto the surface of the window where the PUR glue is to be applied.

Apply the glass primer (green cap) onto the surface of the window where the PUR glue is to be applied.

Apply plenty of it but do not permit it to run.

Allow the primer to dry until the surface is matt.

Apply PUR-RIM activator (blue cap) to the remaining PUR bead on the body flange.

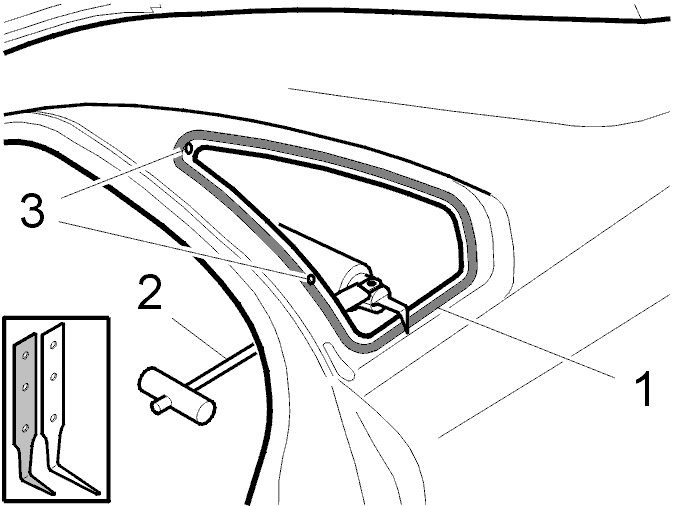

Fig 1: Identifying PUR Bead, Window Knife, And Guide Pins

Courtesy of VOLVO CARS OF NORTH AMERICA.

Load the gun with the two cartridges and the mixer pipe.

Apply glue to the window or on the body flange.

Manually press the window into place.

Secure with tape.

Load the gun with the two cartridges and the mixer pipe.

Apply glue to the window or on the body flange.

Manually press the window into place.

Secure with tape.
