Installing the rear bumper

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

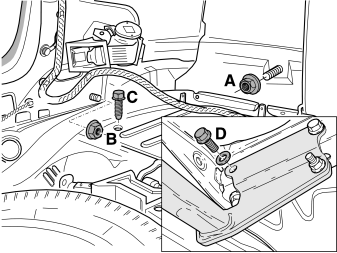

Fig 1: Rear Bumper Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place tape underneath the tail lamps and on the tow hitch to prevent paintwork damage.

Align the bumper with the car body.

Install:

the screw (C). Tighten by hand
the two nuts (A and B). Tighten by hand.

Tighten the screw (C). Tighten to 50 Nm . Tighten the nuts (A, B). Tighten to 5 Nm on the left and right-hand sides.

NOTE:

Install the screw and washer (D) if the vehicle is equipped with a tow hitch. Tighten to 55 Nm .

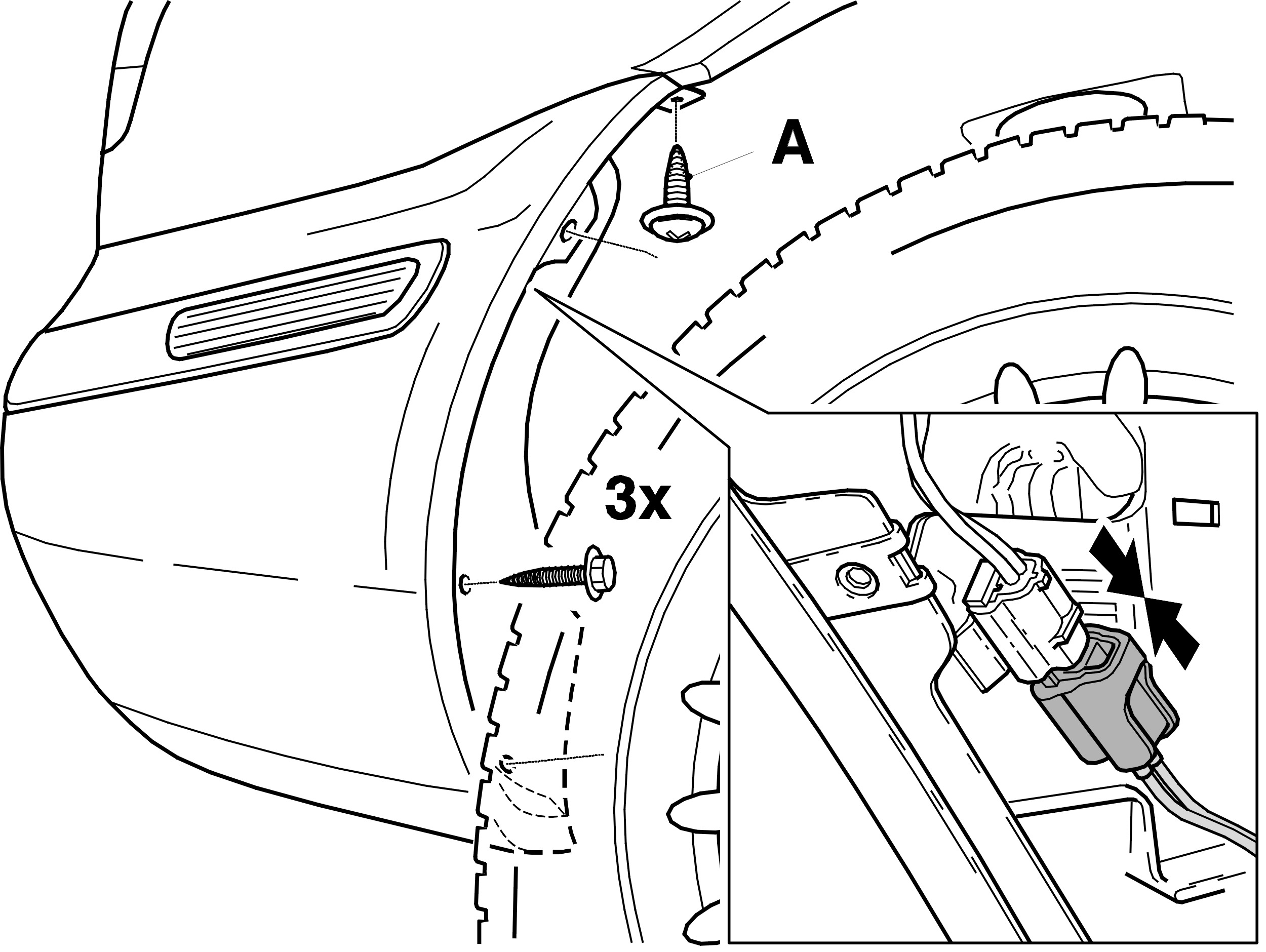

Fig 2: Mudguard And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector for the parking lamps on the right and left-hand sides.

Install the screw (A) on the left and right-hand sides.

Install the mudguard on the left and right-hand sides using the three screws.

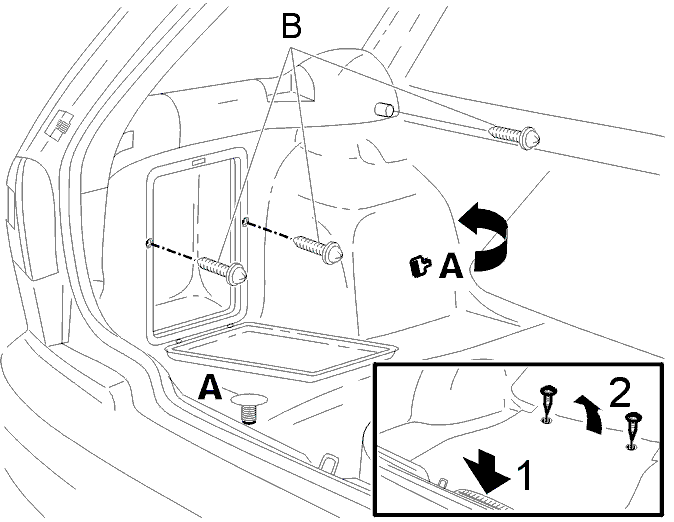

Fig 3: Installing Cargo Compartment Side Panel And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

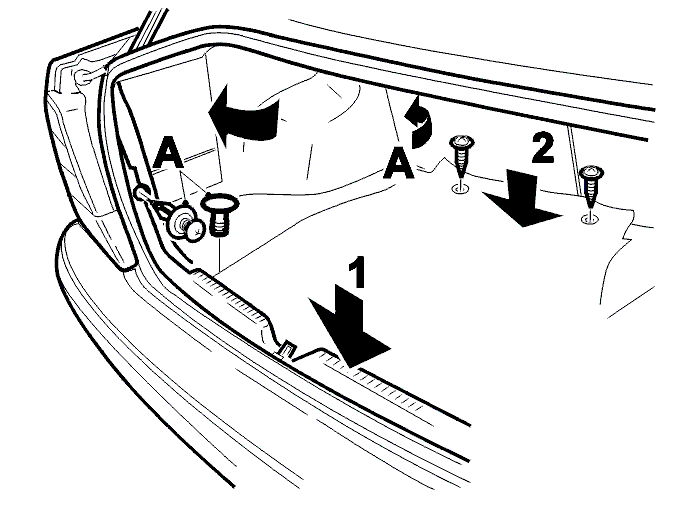

Fig 4: Installing Cargo Compartment Side Panels

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the panel
the screw (B)
the clip (A)
the rear panel
the cargo compartment carpet
the two screws.

(For V40 equipped with extra loudspeakers see Removing / installing additional loudspeakers .)

Clean the bumper.
