Stop lamp switch, adjustment
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Ignition off.
Remove the panel under the dashboard on the driver's side.
Depress the brake pedal.

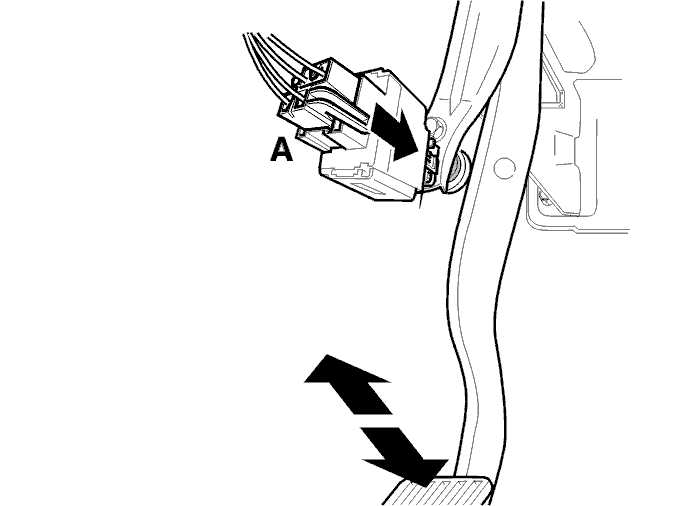

Press the stop (brake) lamp switch, from the side of the connector A, completely forwards.
NOTE:
A number of clicks should be heard and felt when pressing.
Carefully release the brake pedal.
The stop (brake) lamp switch is now adjusted.
Check the function.
NOTE:
The stop lamp must light when the brake pedal is pressed down more than approximately 1 mm.
Reinstall the panel under the dashboard on the driver's side.
