Installing the control valve and wiring

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

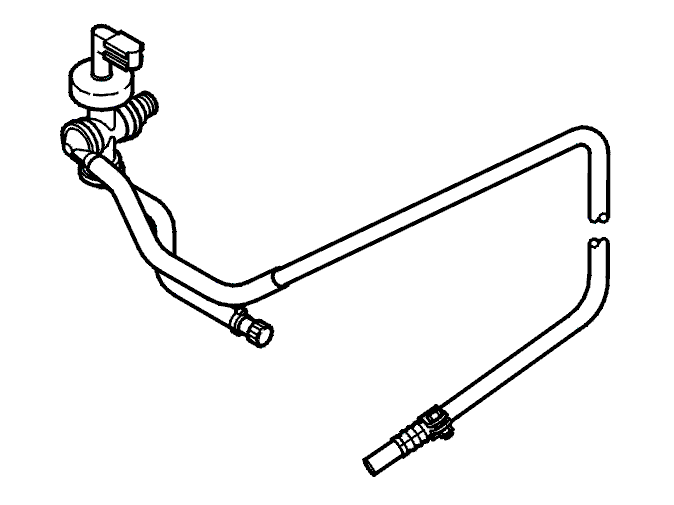

Fig 1: Installing Control Valve And Wiring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the valve and wiring.
NOTE:
Ensure that the wiring does not catch or rub.
the cable in the intake manifold
the clamp on the cable, from the intake manifold. Tighten to 6 Nm
the quick-release connector on the vacuum pump
the valve in the cable for the power brake booster
the relay terminal.
