Air conditioning (A/C) compressor, installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

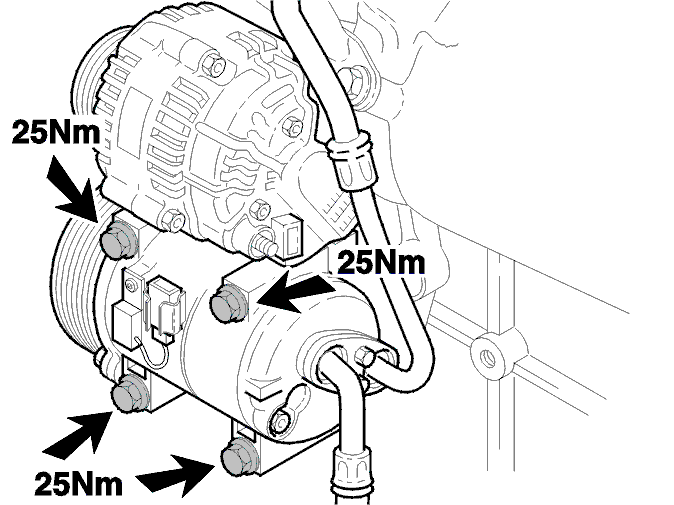

Fig 1: Air Conditioning Compressor Screws With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the compressor and its four screws. Tighten to 25 Nm .
