Replacing the washer reservoir: Removal
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove the pump and sensor from the reservoir.
NOTE:
Windshield washer fluid runs out when removing the pump or sensor from the reservoir.

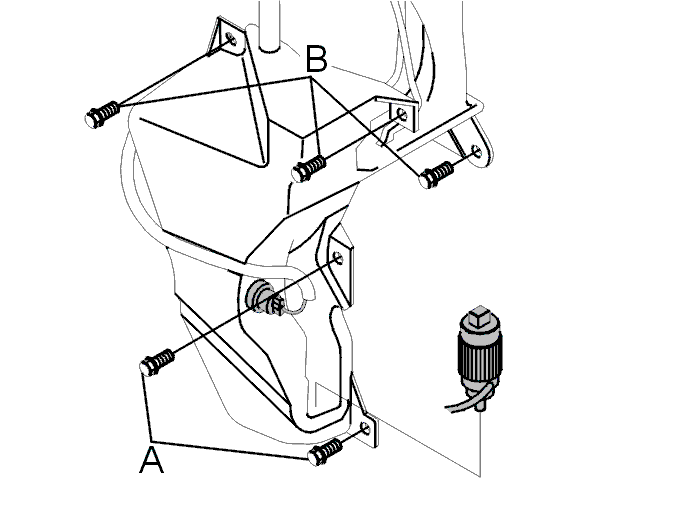

Remove the three (B) screws for the reservoir. Remove the reservoir.
If the car is equipped with an evaporative emission (EVAP) system
Remove the two screws (A) securing the EVAP filter in the reservoir.
