Replacing the washer level sensor: Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Air Baffle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Remove the air baffle.

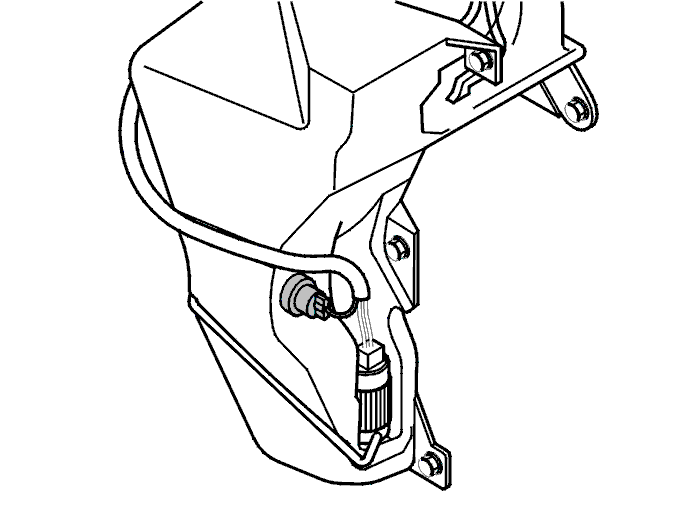

Fig 2: Replacing Washer Level Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector.

Remove the sensor by pulling it straight out.

NOTE: When removing the sensor, the windshield washer fluid runs out.
