Replacing the starter motor relay: Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

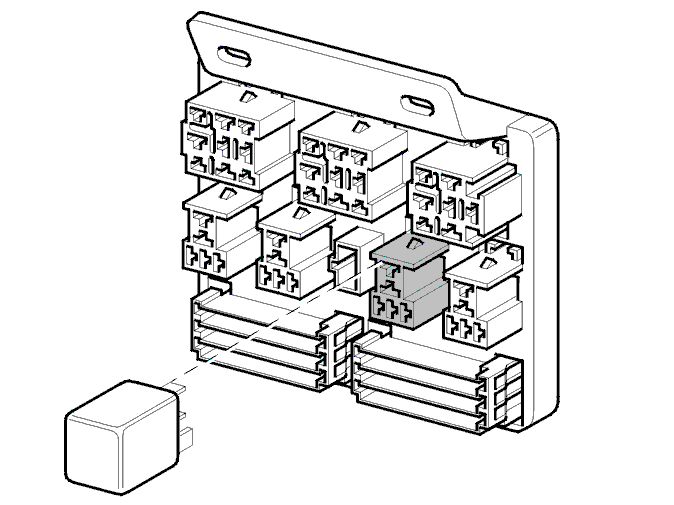

Fig 1: Identifying Relay

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel under the dashboard on the driver's side.

Remove the relay from the relay holder in the central relay unit.
