Power sun roof

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Removal

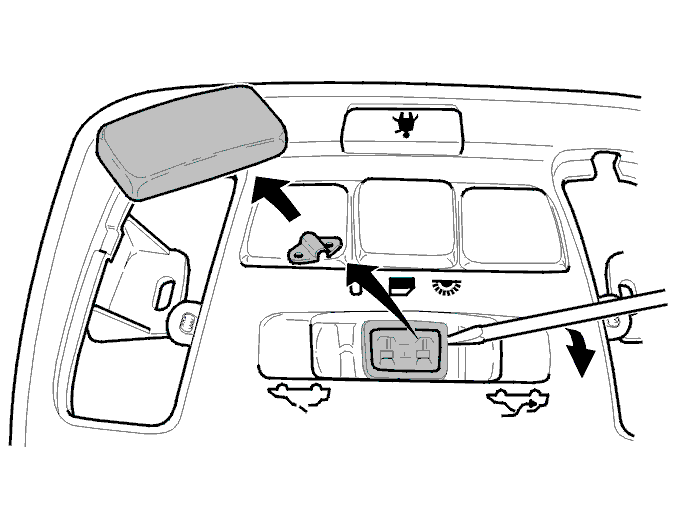

Fig 1: Removing Power Sun Roof

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the cover over the courtesy lighting switch. Lift the edge using a small screwdriver
NOTE: The switch spring is not secured
the switch using a small screwdriver
NOTE: The courtesy lighting bulb must be removed when installing the switch (to ensure good contact at the connector pins).
the bulb according to Front interior lighting

Installation

Install in reverse order.
