Mode selector switch, automatic transmissions
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Removal
Remove:
- the center console according to Removing the front center console

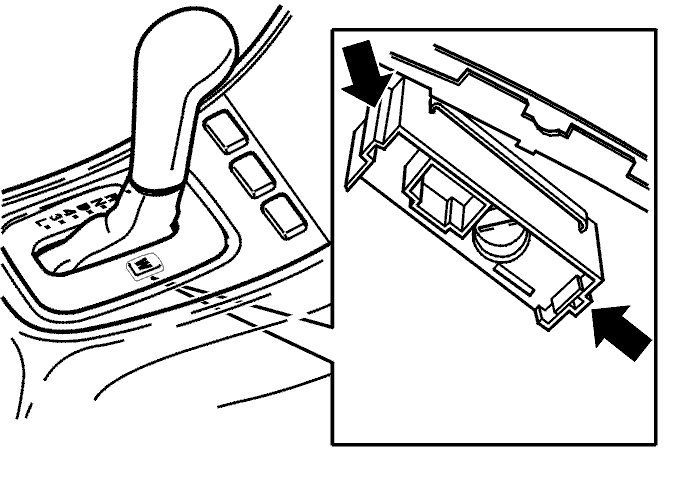

- the switch by carefully bending the clips outwards using a small screwdriver.
Reinstall:
- the switch
- the center console according to Installing front center console .
