Ignition switch
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Removal
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
- the lower steering shaft cover (3 screws)

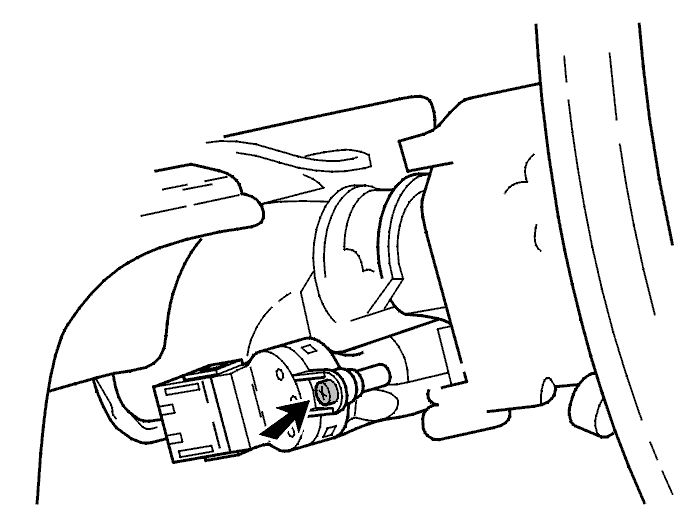

- the mounting screw from the reverse of the ignition switch.
Disconnect the ignition switch connector.
Installation
Install in reverse order.
Check the function.
