Hazard warning signal flasher

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Fig 1: Removing Dashboard Environment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel for the climate control module.

Remove the two upper screws.

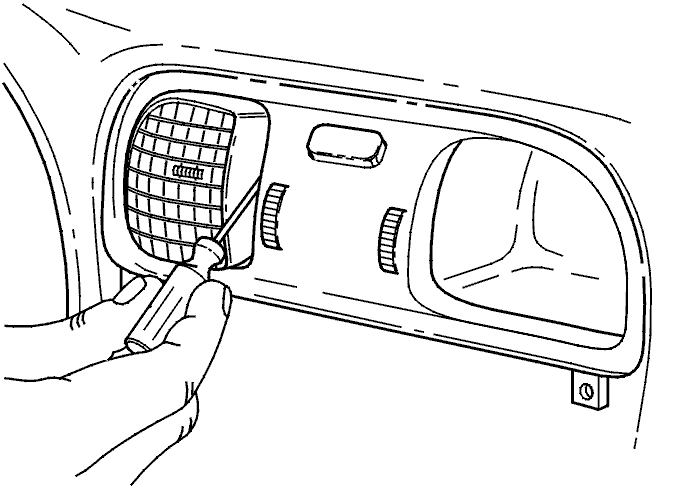

Fig 2: Prying Out Ventilation Vents Using Small Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pry out the ventilation vents using a small screwdriver.

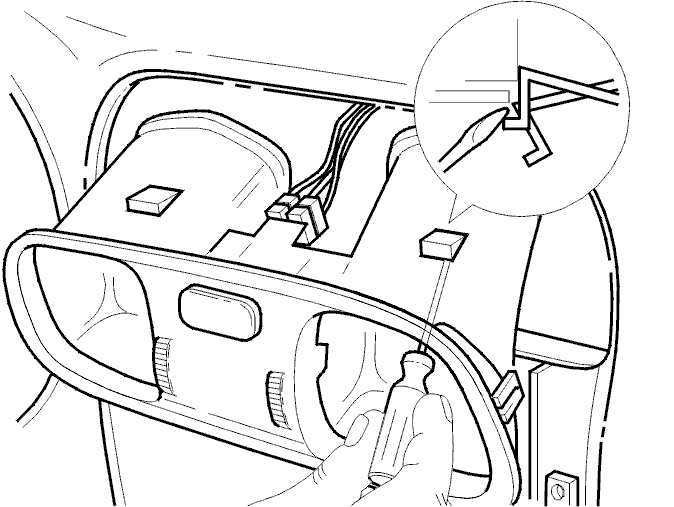

Fig 3: Pressing Panel Catches Downwards From Inside Using Small Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the panel catches downwards from the inside using a small screwdriver. Pull the panel forwards slightly.

Press in the two clips on the switch. Pull the switch out backwards.

Disconnect the connector.

Installation

Install in reverse order.
