Replacing relays in central electrical unit in passenger compartment: Installation
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Replace the relay.

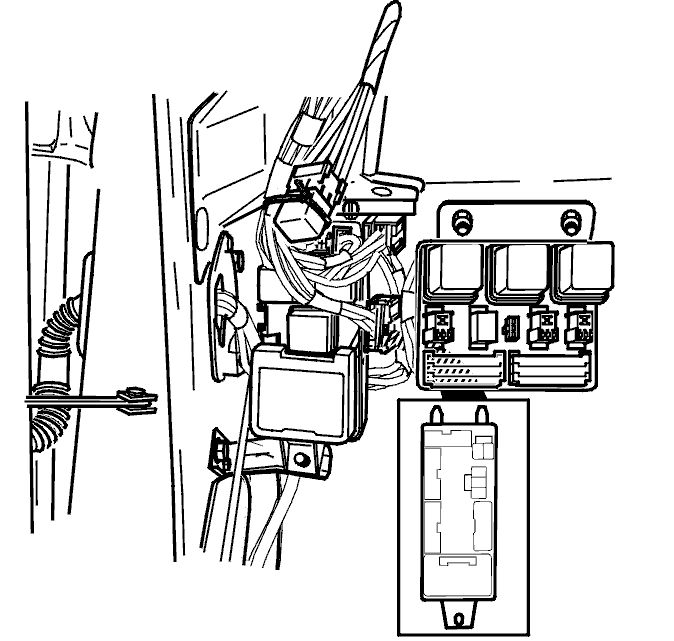

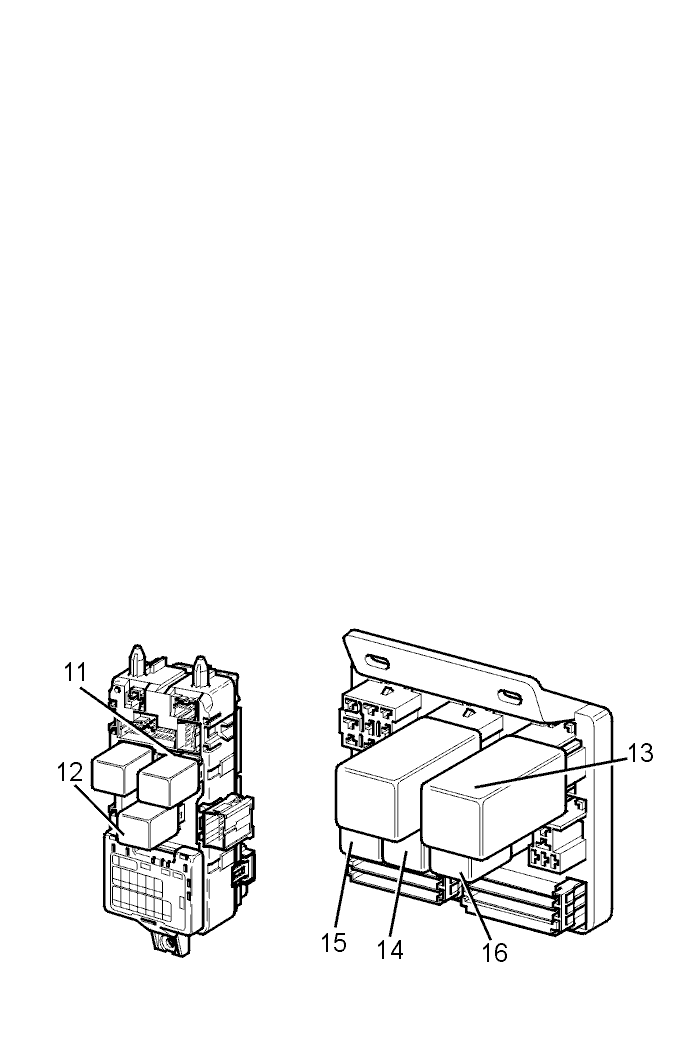

See the graphics and table below for the location of the relays.
| Relay | Description | Remarks |
|---|---|---|
| 11 | Heated rear window and door mirrors | - |
| 12 | Turn signal lamps | - |
| 13 | Seat belt reminder - key warning | USA/CDN/Korea |
| 14 | Power windows | - |
| 15 | Starter motor - immobilizer | - |
| 16 | Electrical socket - cigarette lighter | - |
| - | Climate control module | - |
Ignition on.
Test relay function.
Install Installing the soundproofing .
