Replacing relay for the seat belt and key reminder: Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

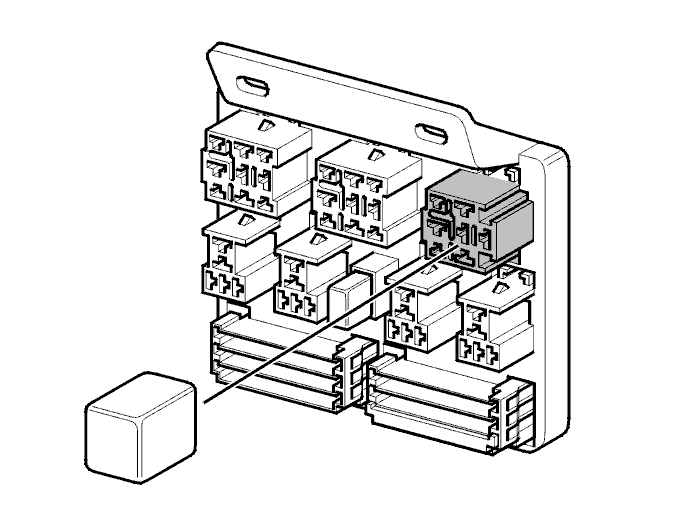

Fig 1: Replacing Relay For Seat Belt And Key Reminder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Remove the soundproofing panel under the instrument panel on the driver's side.

NOTE: Note the courtesy lighting cable.

Remove the relay from the relay box in the passenger compartment.
