Removing the Tailgate Wiper Mechanism
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Open the wiper arm cover.
- Slacken off the nut. Unscrew it a few turns to protect the thread on the wiper mechanism spindle.

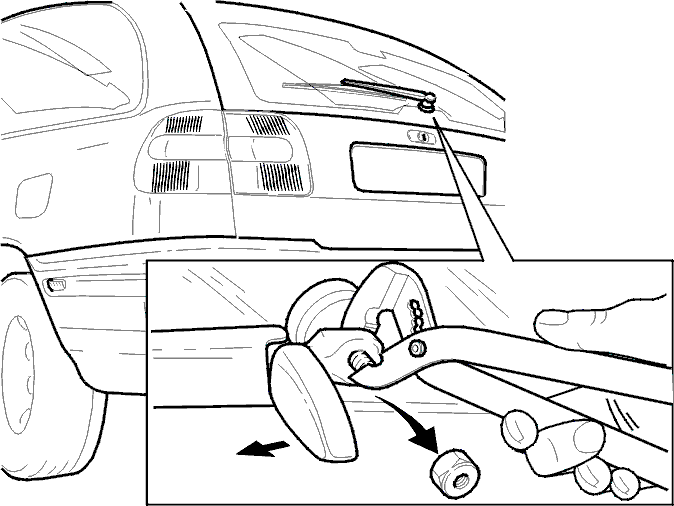

- Remove the wiper arm from the wiper arm mechanism by supporting a pipe wrench on the nut and pressing off the arm.
- Remove the wiper arm.
