Remove the washer reservoir

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

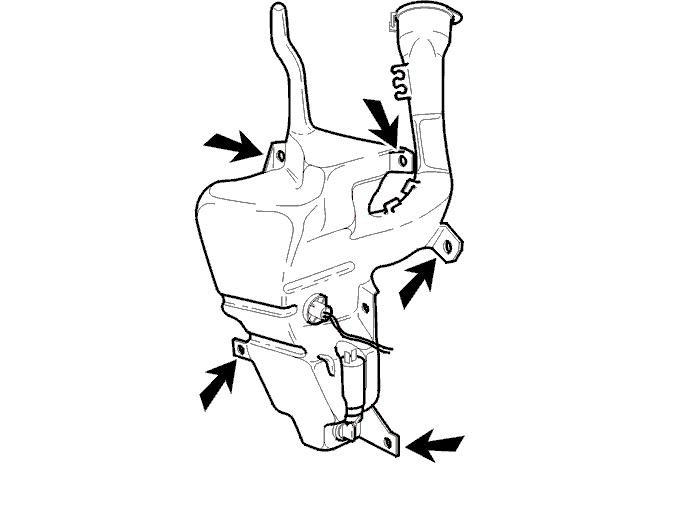

Fig 1: Removing Washer Reservoir

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

The right hand side splash guard (partially)
The front fog lamp
Right front wheel
The hub
Drain the reservoir
The connectors and hoses
Slacken off the support screw for the carbon filter a few turns
The upper mounting screw for the reservoir
The washer unit assembly (crosshead screw on upper side)
The washer reservoir screws (4)
The headlamp cover.

Pull out the holder by twisting from underneath.

Remove the pump and the sensor.
