Remove ECC

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

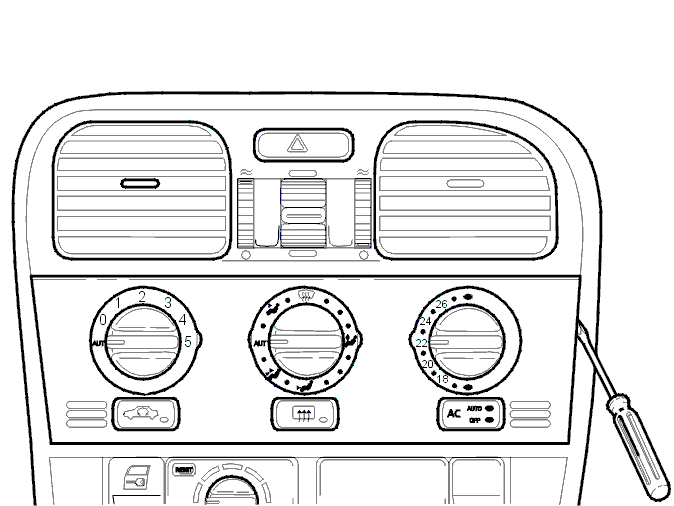

Fig 1: Removing Panel By Inserting Weatherstrip Tool Along Edge And Pulling Panel Forward

Courtesy of VOLVO CARS OF NORTH AMERICA.

If the switch is defective the whole control panel must be replaced.

Remove the panel by carefully inserting a weatherstrip tool along the edge and pull the panel forwards.

The knobs remain in position.

Remove the four torx mounting screws
Remove the rear section of the bracket. Press carefully at the edge with a screwdriver.

NOTE: The radio must be pulled forward a few centimeters before the rear section of the bracket can be removed.

Fig 2: Center Console Locker

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw behind the rear section of the bracket. Pull the bracket forward slightly.
Disconnect the connectors from the switches and the radio. Remove the bracket.
Lean the control panel (unit) downwards and disconnect the connector and hose.
Remove the unit.

Install in reverse order.
