Replacing the blower fan switch

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Knobs From Heater Control And Inserting Small Screwdriver At Rear Edge Under Each Knob

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the knobs from the heater control; insert a small screwdriver at the rear edge of the control.
Remove the cover panel (insert fingers in the opening and pull carefully).
Remove the four torx mounting screws.

Fig 2: Center Console Locker

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rear section of the bracket. Press carefully at the edge with a screwdriver.

NOTE: The radio must be pulled forward a few centimeters before the rear section of the bracket can be removed.

Remove the screw behind the rear section of the bracket. Pull the bracket forward slightly.
Disconnect the connectors from the switches.

NOTE: Do not disconnect the radio connectors

Lean the heater controls forwards.

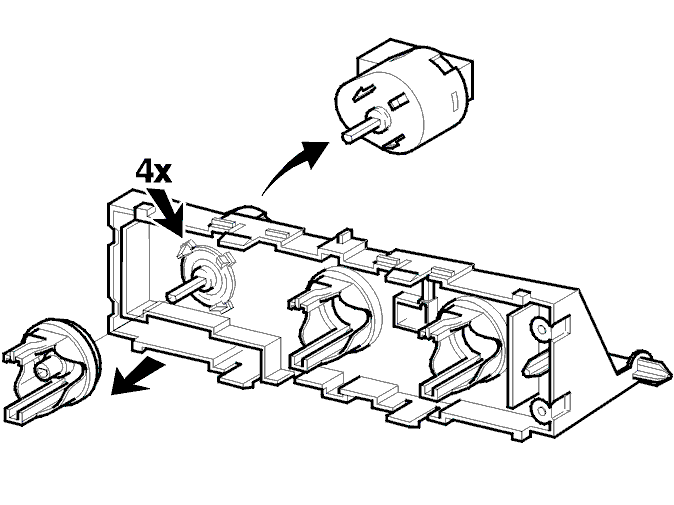

Fig 3: Removing Extension Piece From Switch Pins

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the extension piece from the switch pins.
Press in the four retaining clips. Remove the switch backwards.

Install in reverse order.
