Install the headlamps and related components
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

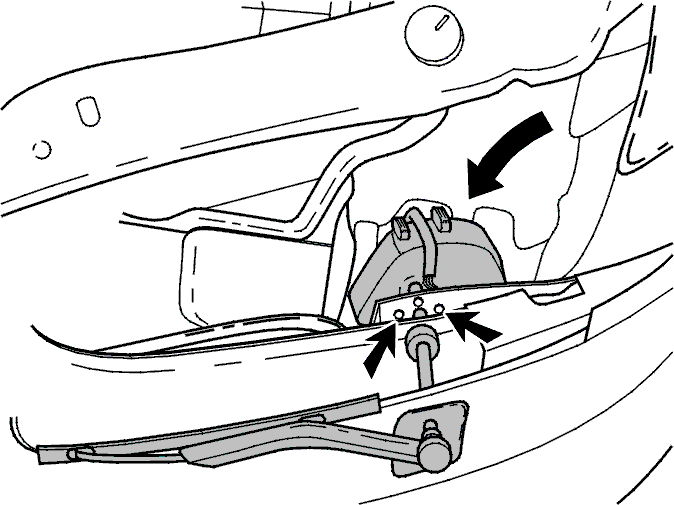

- Install a new wiper motor
- Connect the connectors. Install the cable in the clip
- Install the headlamp, see Replacing the headlamp assembly
- Let the headlamp wiper motor return to the parked position
- Install the headlamp wiper arm, see Install the headlamp wiper arm
- Check the function.
