Remove the headlamp wiper arm

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

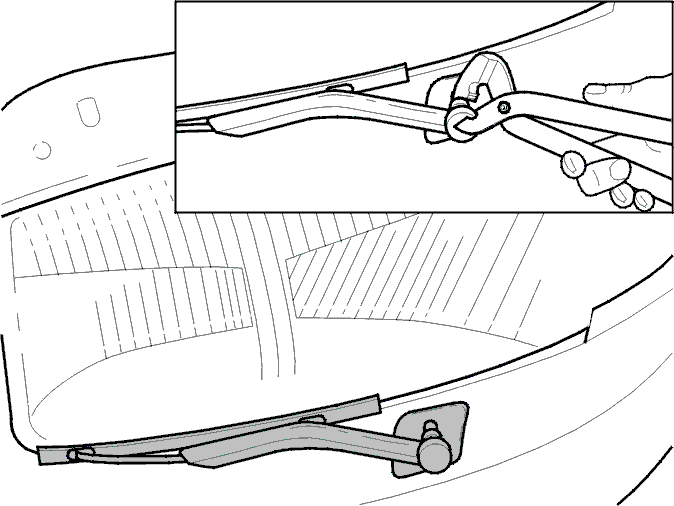

Fig 1: Removing Headlamp Wiper Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Push the cover at the wiper arm mounting to one side.
Slacken off the nut two or three turns to protect the threads on the wiper mechanism shaft.
Remove the wiper arm from wiper arm mechanism: Hold a pipe wrench on the nut and press off the arm.
Remove the nut and washer.
Remove the arm.
Remove the washer hose.
